參數 Parameter |
型號 Model |

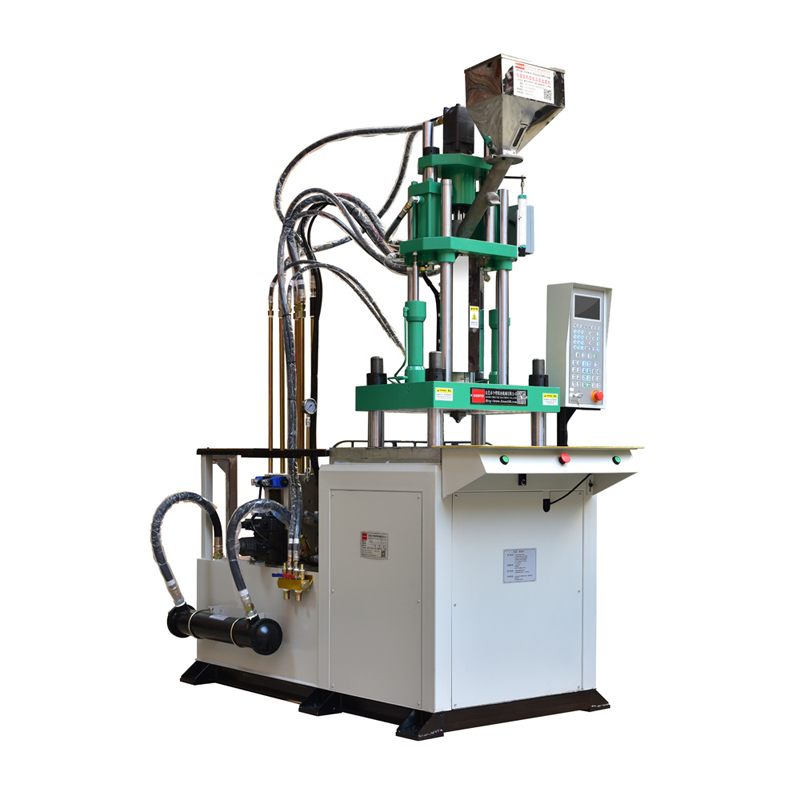

UNIT | KSU-70T-5雙射缸 | ||
|
射出系統 Injection unit |
螺桿直徑 Screw Diameter | mm | 32 | 40 | |
| 射出壓力 Iniection Pressure | kg/cm2 | 1531 | 980 | ||
| 射出量 (PS)Max.Shot Weight(PS) | g | 102 | 160 | ||
| 螺桿行程 Injection Rate | mm | 140 | |||
| 螺桿轉數 Screw Speed Max. | Turn | 0-260 | |||
| 射嘴行程 Nozzle Retraction | mm | 210 | |||
| 溫度控制段數 Number of temperature Control | Snt | 3 | |||
|
鎖模系統 Clamping unit |
鎖模力 Clamping Force | Tons | 70 | ||
| 模板尺寸 Platen Size | mm | 660*480 | |||
| 模柱間距 Distance Between Tie Bere | mm | 480*300 | |||
| 最小模厚 Min.Mold Height | mm | 200/300 | |||
| 開模行程 Openging Stroke | mm | 250 | |||
| 最大開模距離 Max. Open daylight | mm | 450/550 | |||
| 頂出壓力 Ejetor Force | Tons | 2 | |||
|
動力電熱系統 Power\Heading unit |
最大液壓壓力 Max. Hydaulic Pressure | kg/cm2 | 140 | ||
| 泵浦吐出量 Pump Outpet | 1/min | 47 | |||
| 馬達電力 Pump Motor power | kw/HP | 11/15HP | |||
| 電熱容量 Berrel Heating Power | kw | 5.5 | |||
| 總用電量 Total Weight | kw | 16.5 | |||
|
其他 Other |
機器重量 Machine Weight | kg | 2600 | ||
| 機器外型尺寸 Machine Dimensions(L*W*H) | m | 2.1*1.5*3.2 | |||
